제노스의 모든 제품은 ISO 국제표준규격 기반의
체계적이고 철저한 품질관리시스템에 따라 제조됩니다.

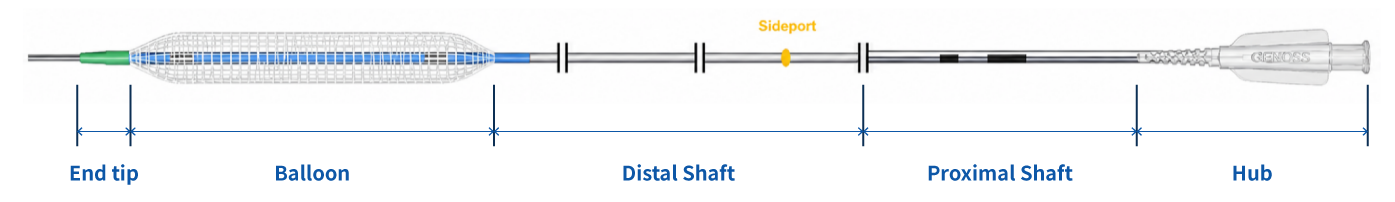

| Distal Shaft | 2.8 Fr (0.92 mm) |
| Proximal Shaft | 2.0 Fr (0.68 mm) |
| Nominal Pressure | 14 atm (2.00 mm ~ 4.00 mm) |
| Rated Burst Pressure | 30 atm (2.00 mm ~ 4.00 mm) |
| Nominal Pressure |
14atm | Catheter type | Rapid Exchange |
| Rate Burst Pressure |
30atm | Proximal shaft |
2.0Fr (0.68mm) |
| Balloon material |
Non-compliant | Distal shaft | 2.8Fr (0.92mm) |
| Folding | 3-fold | Usable length | 1450mm |
| Min. Guiding catheter ID |
5Fr(1.42mm), 0.056″ | Shelf life | 3 year |
| Min. Guiding wire OD |
0.014″(0.36mm) |
|
Balloon Diameter (mm) |
Balloon length (mm) | ||
| 10 | 16 | 20 | |
| 2.00 | GUB-10-200 | GUB-16-200 | GUB-20-200 |
| 2.50 | GUB-10-250 | GUB-16-250 | GUB-20-250 |
| 3.00 | GUB-10-300 | GUB-16-300 | GUB-20-300 |
| 3.50 | GUB-10-350 | GUB-16-350 | GUB-20-350 |
| 4.00 | GUB-10-400 | GUB-16-400 | GUB-20-400 |
