Product Introduction

Product

All Genoss products are manufactured in accordance with a systematic
and rigorous quality control system based on ISO standards.

Product Introduction

Vascular Intervention

PICC

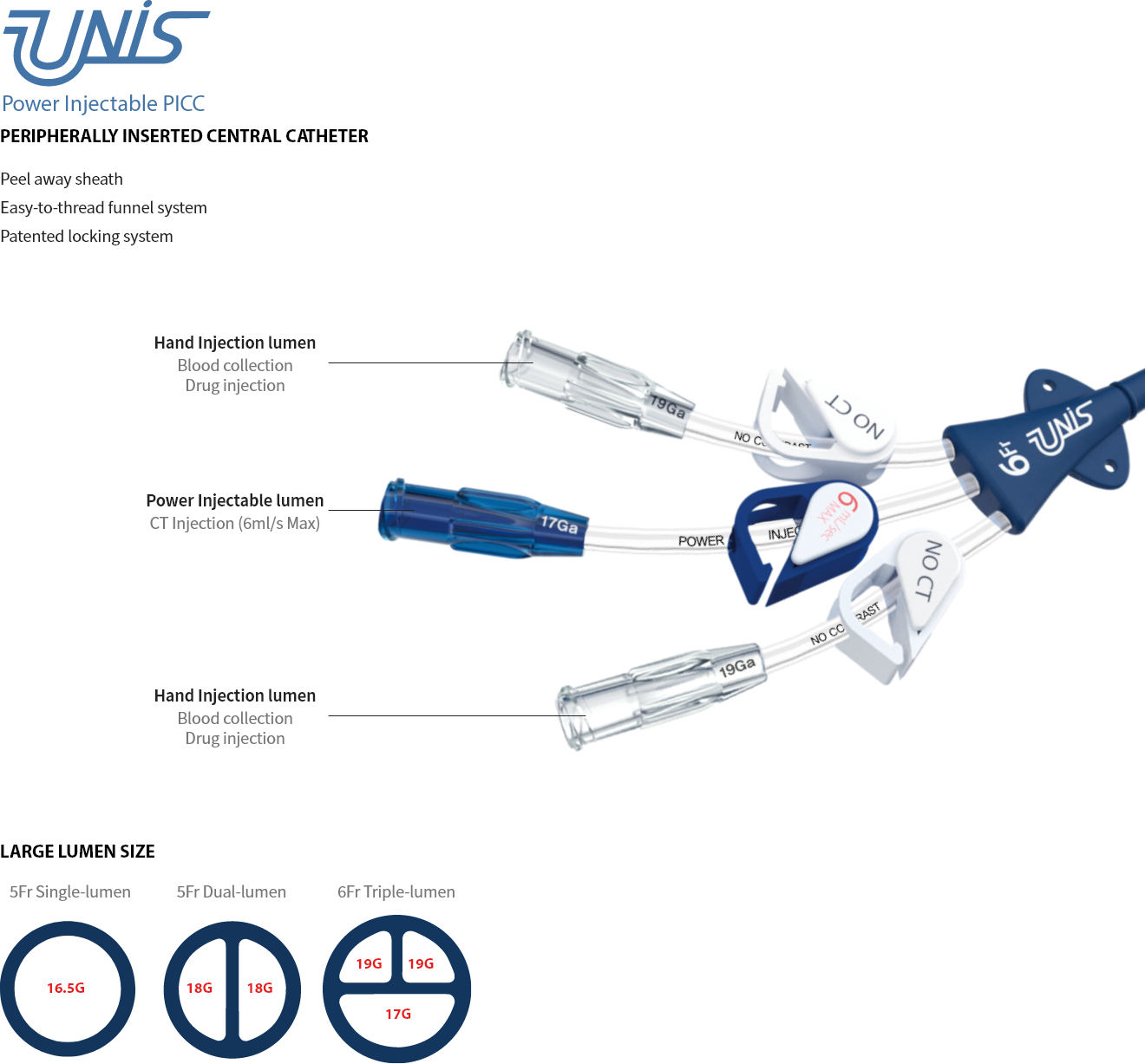

UNIS™

Description

- Improved patient convenience with flexible materials
- Short-term (within 30 days) insertion into the patient’s blood vessels for drug injection and blood collection
- Large lumen diameter for high flow rate

Product Inquiry

More Information

Purpose of Use

Accessible peripheral vein extinction: reducing pain and stress in patients due to repeated venous puncture
Injection of hyperosmotic fluid: injection of hyperosmotic fluid such as TPN is highly irritating to peripheral veins and can result in dilution if injected into large vessels
Administration of blistering anti-cancer drugs: preventing trauma and wounds caused by a blood transfusion of drugs
Long-term intravenous therapy: safe and effective infusion of fluids or drugs

Features

Model Name

Model	French size outher Diameter	Lumens	Gauge size inner Diameter	catheter length	Maximum flow rate (with warmed Contrast)	Priming volume	Guidewire length
GP-5SIR	5Fr	1	18	55cm	5ml / sec	< 0.67ml	120cm
GP-5DIR	5Fr	2	18/18		5ml / sec	< 0.8ml
GP-6TIR	6Fr	3	17/19/19		6ml / sec	< 1.0ml
GP-5SIR70	5Fr	1	18		5ml / sec	< 0.67ml	70cm
GP-5DIR70	5Fr	2	18/18		5ml / sec	< 0.8ml
GP-6TIR70	6Fr	3	17/19/19		6ml / sec	< 1.0ml
