Shape and Structure
Plate
- 3D Printed Conventional Clavicle Plates
- Anatomically Pre-Contoured
- Low Profile Plates, Thickness 2.4㎜, Narrow Width 8.0㎜
Screw
- Applied T15 Hexalobe Connection
- Locking/Non-Locking Screw(Ø3.5㎜, Ø 2.7㎜), Compression Screw(Ø3.5㎜)
Model Name
SLIM Clavicle Plate

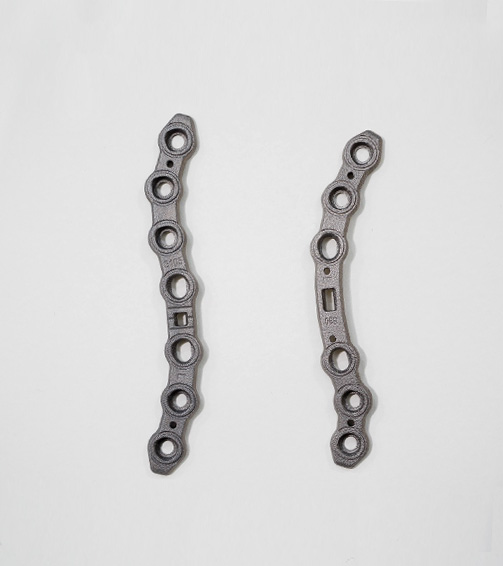

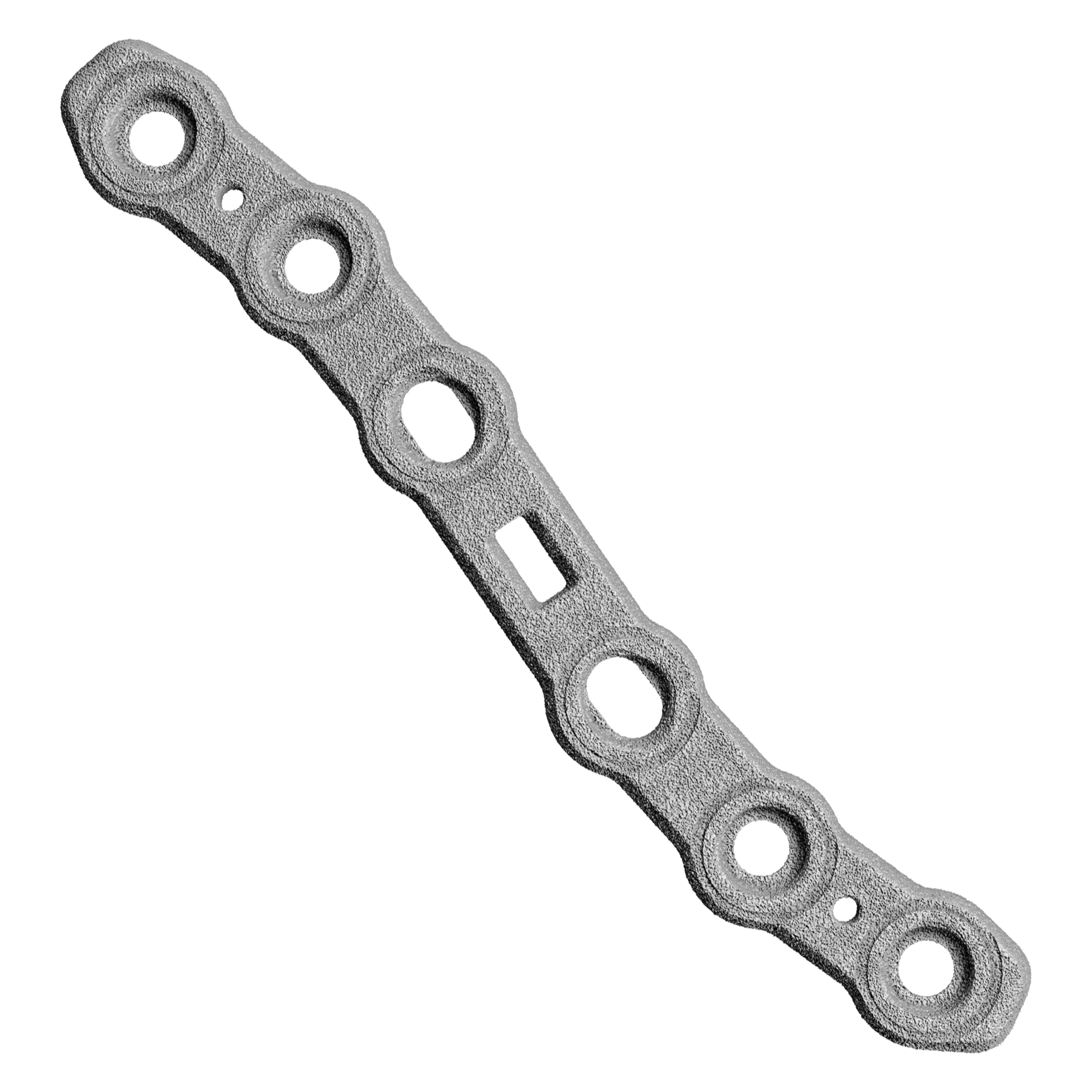

Superior Plate
| Art No. |
Dimension (mm) |
Image |
| L |
T |
W |
R/L |
| TCP SP 111 R |
90.0 |
2.8 |
11.0 |
R |
|
| TCP SP 114 R |
105.0 |
| TCP SP 117 R |
120.0 |
| TCP SP 111 L |
90.0 |
L |
| TCP SP 114 L |
105.0 |
| TCP SP 117 L |
120.0 |

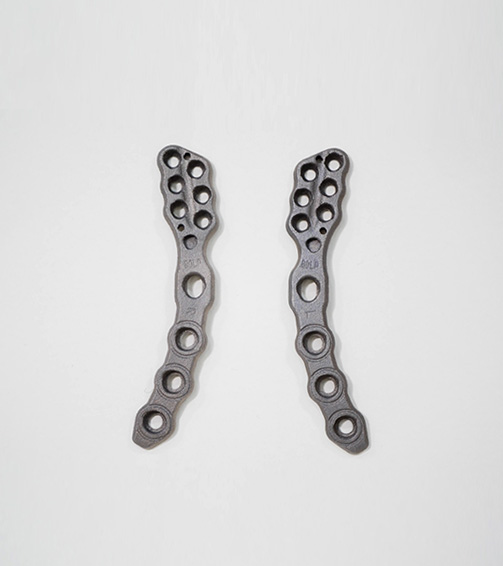

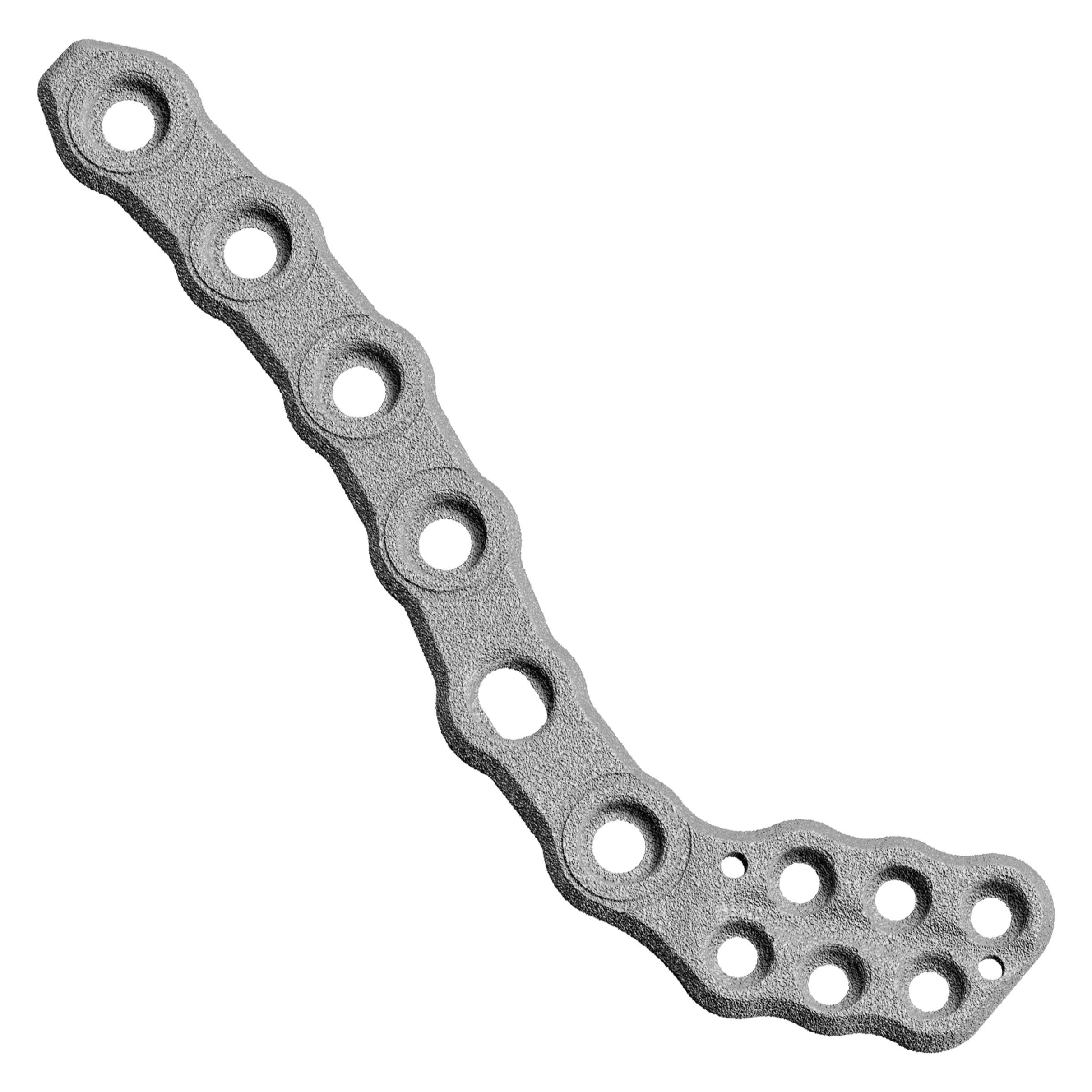

Lateral Plate
| Art No. |
Dimension (mm) |
Image |
| L |
T |
W |
R/L |
| TCP LP 106 R |
65.0 |
2.8 |
11.0 |
R |
 |
| TCP LP 109 R |
80.0 |
| TCP LP 112 R |
95.0 |
| TCP LP 106 L |
65.0 |
L |
| TCP LP 109 L |
80.0 |
| TCP LP 112 L |
95.0 |

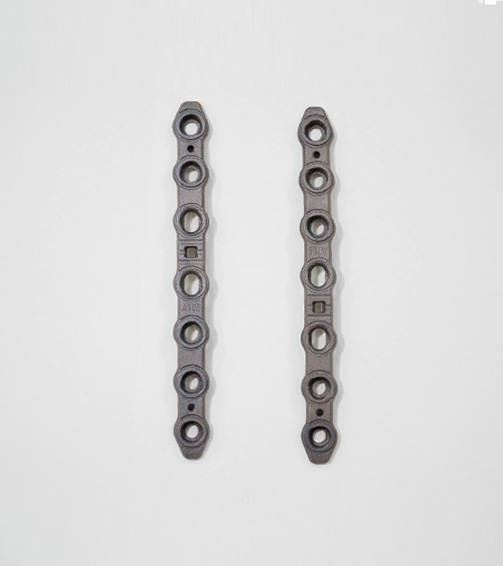

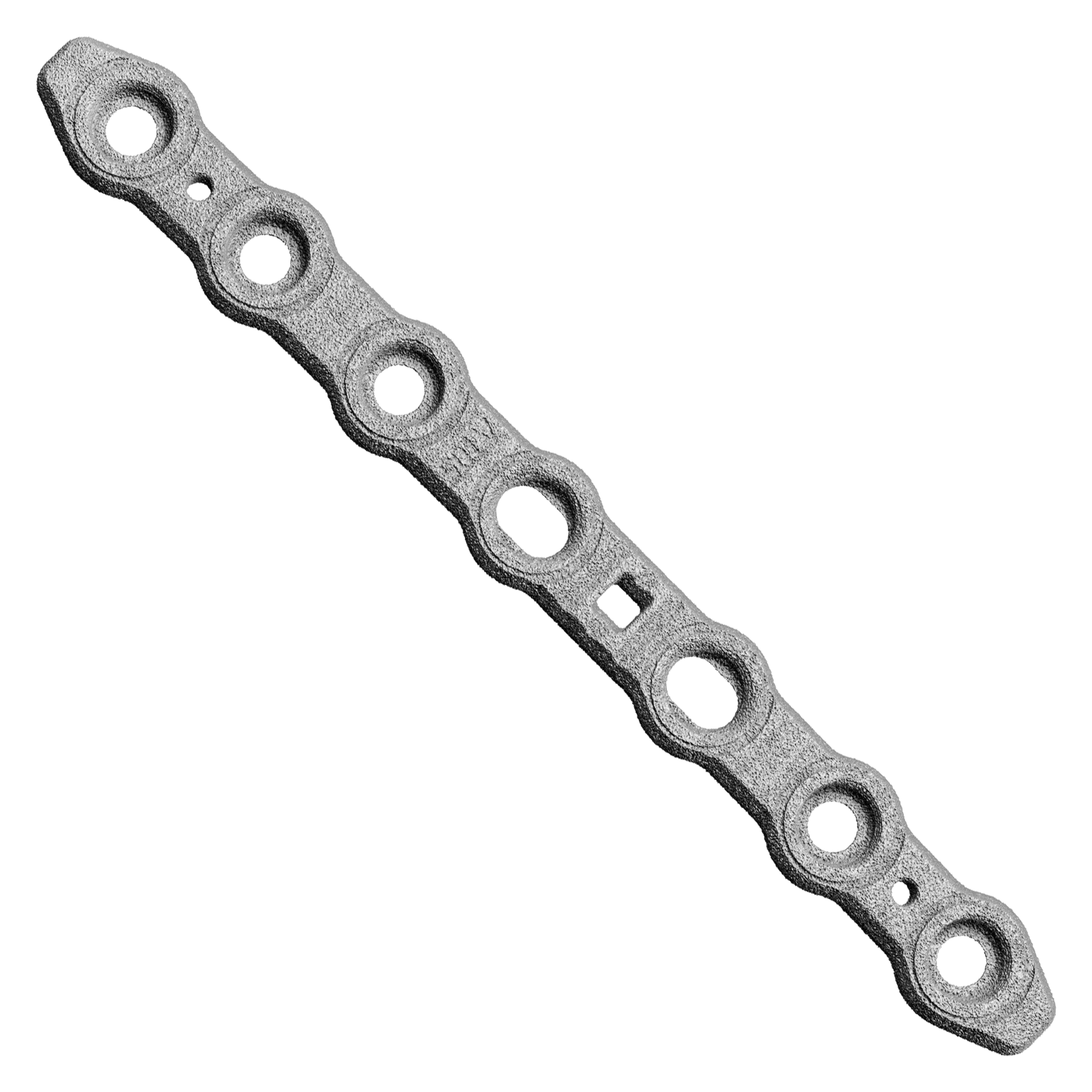

Anterior Plate
| Art No. |
Dimension (mm) |
Image |
| L |
T |
W |
R/L |
| TCP AP 066 |
90.0 |
2.8 |
11.0 |
- |
 |
| TCP AP 069 |
105.0 |
| TCP AP 072 |
120.0 |

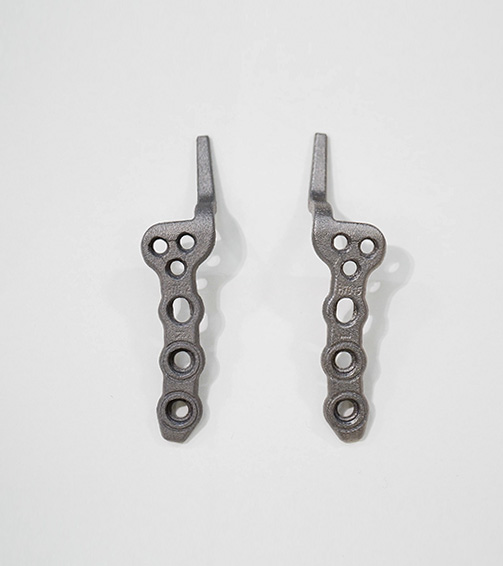

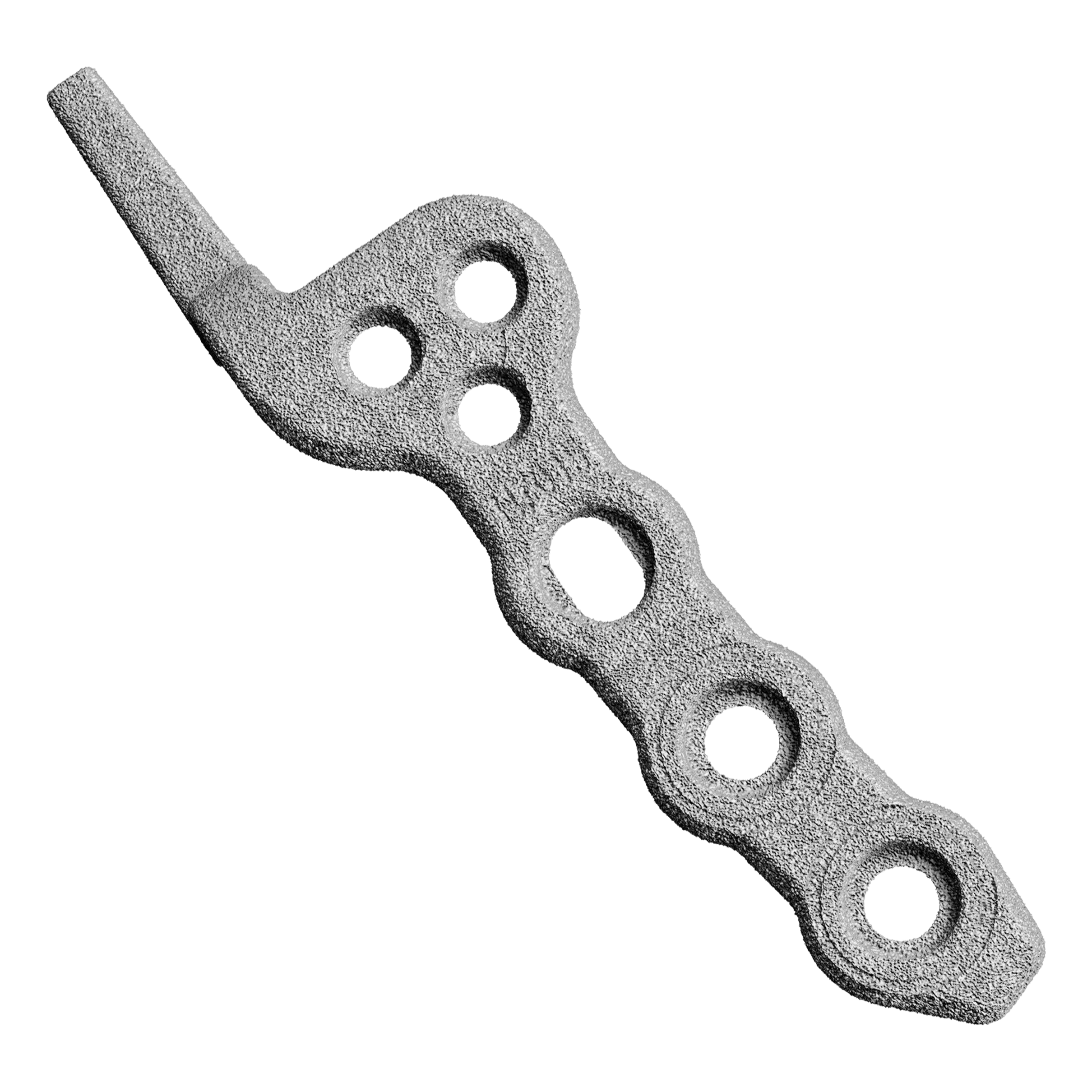

Hook Plate
| Art No. |
Dimension (mm) |
Image |
| L |
T |
Hook Depth |
R/L |
| TCP HP 012 R |
70.0 |
2.8 |
12 |
R |
 |
| TCP HP 042 R |
15 |
| TCP HP 072 R |
18 |
| TCP HP 012 L |
70.0 |
12 |
L |
| TCP HP 042 L |
15 |
| TCP HP 072 L |
18 |
T15 Clavicle Bone Screw

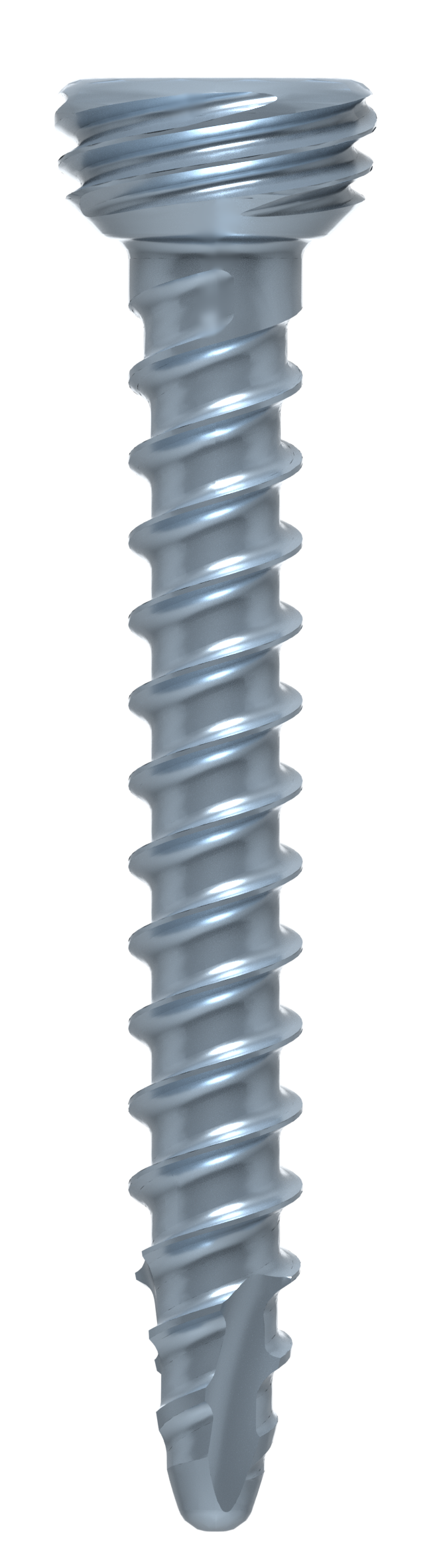

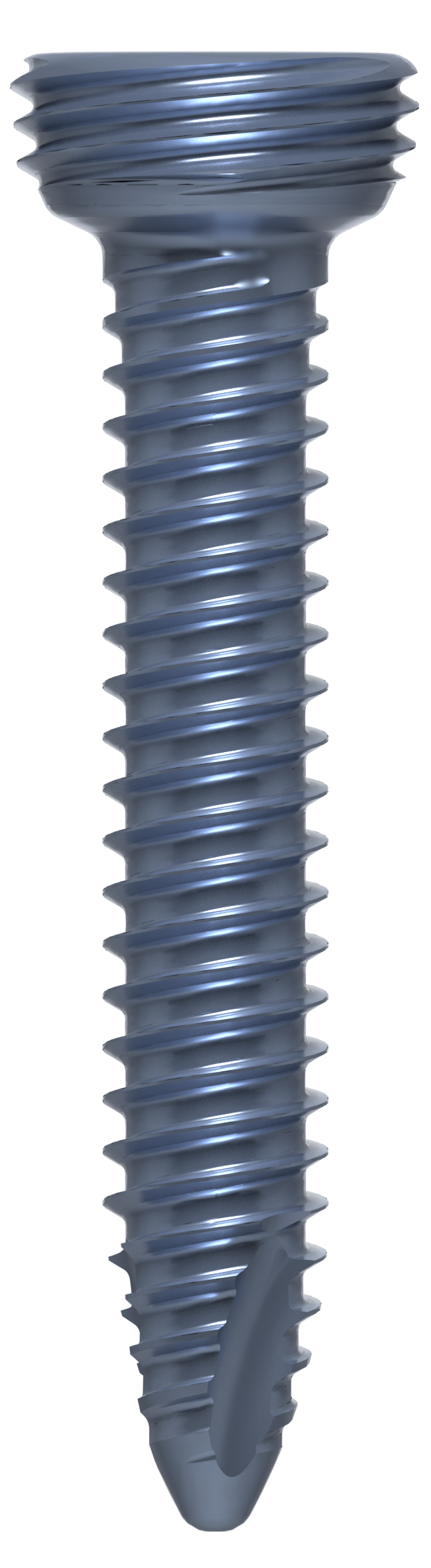

Locking Screw(Ø 2.7㎜, Ø3.5㎜)
| Art No. |
Dimension (mm) |
Image |
| L |
ØD |
| SCS LS 2710 |
10.0 |
Ø2.7 |
 |
| SCS LS 2712 |
12.0 |
| SCS LS 2714 |
14.0 |
| SCS LS 2716 |
16.0 |
| SCS LS 2718 |
18.0 |
| SCS LS 2720 |
20.0 |
| Art No. |
Dimension (mm) |
Image |
| L |
ØD |
| SCS LS 3510P |
10.0 |
Ø3.5 |
 |
| SCS LS 3512P |
12.0 |
| SCS LS 3514P |
14.0 |
| SCS LS 3516P |
16.0 |
| SCS LS 3518P |
18.0 |
| SCS LS 3520P |
20.0 |
| SCS LS 3522P |
22.0 |
| SCS LS 3524P |
24.0 |

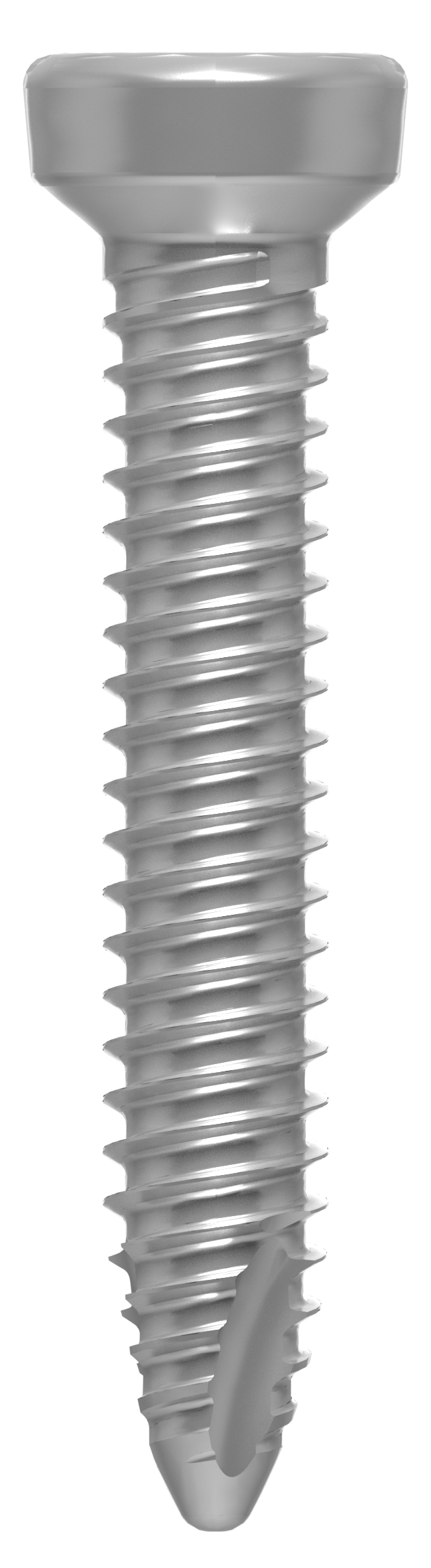

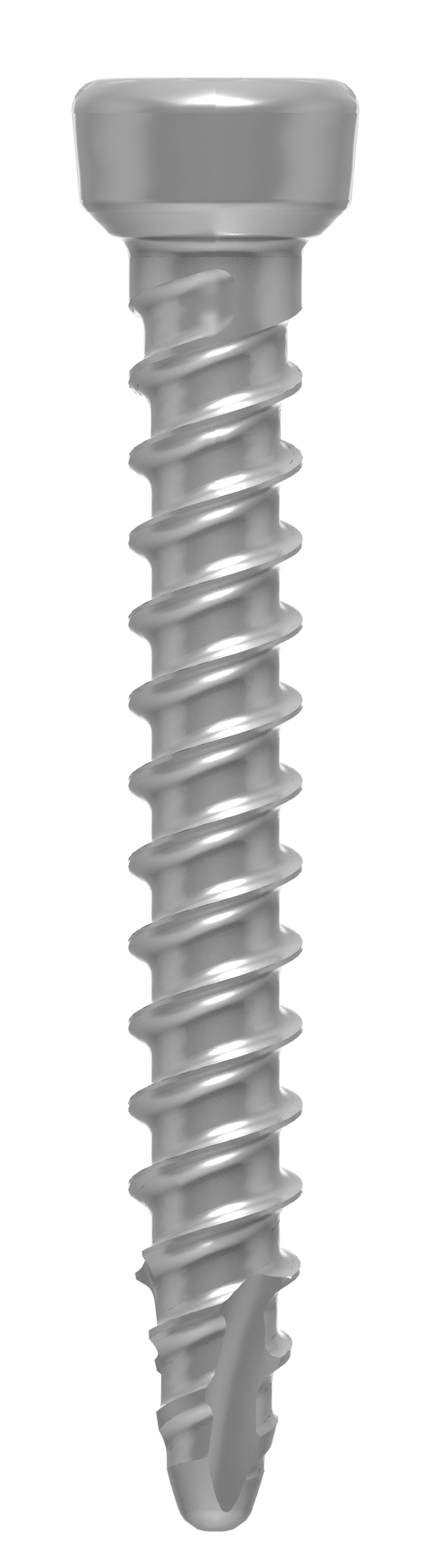

Non-Locking Screw(Ø 2.7㎜, Ø3.5㎜)
| Art No. |
Dimension (mm) |
Image |
| L |
ØD |
| SCS NS 2710 |
10.0 |
Ø2.7 |
 |
| SCS NS 2712 |
12.0 |
| SCS NS 2714 |
14.0 |
| SCS NS 2716 |
16.0 |
| SCS NS 2718 |
18.0 |
| SCS NS 2720 |
20.0 |
| Art No. |
Dimension (mm) |
Image |
| L |
ØD |
| SCS NS 3510P |
10.0 |
Ø3.5 |
 |
| SCS NS 3512P |
12.0 |
| SCS NS 3514P |
14.0 |
| SCS NS 3516P |
16.0 |
| SCS NS 3518P |
18.0 |
| SCS NS 3520P |
20.0 |
| SCS NS 3522P |
22.0 |
| SCS NS 3524P |
24.0 |
Clavicle Bone Screw (T15 Hexalobe)

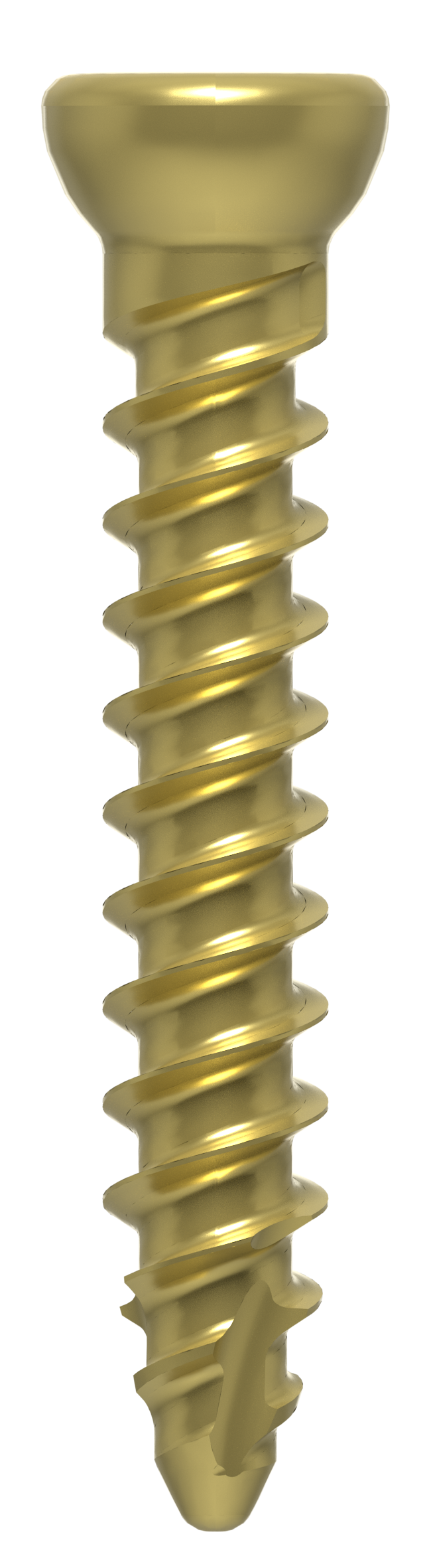

Compression Screw(Ø3.5㎜)
| Art No. |
Dimension (mm) |
Image |
| L |
ØD |
| SCS CS 3510P |
10.0 |
Ø3.5 |
 |
| SCS CS 3512P |
12.0 |
| SCS CS 3514P |
14.0 |
| SCS CS 3516P |
16.0 |
| SCS CS 3518P |
18.0 |
| SCS CS 3520P |
20.0 |
| SCS CS 3522P |
22.0 |
| SCS CS 3524P |
24.0 |
