Intended Uses
The 3D Cage Lumbar is a medical device used to address structural abnormalities caused by Degenerative Intervertebral Disc, specifically designed for the treatment of disc herniation.
Shape and Structure

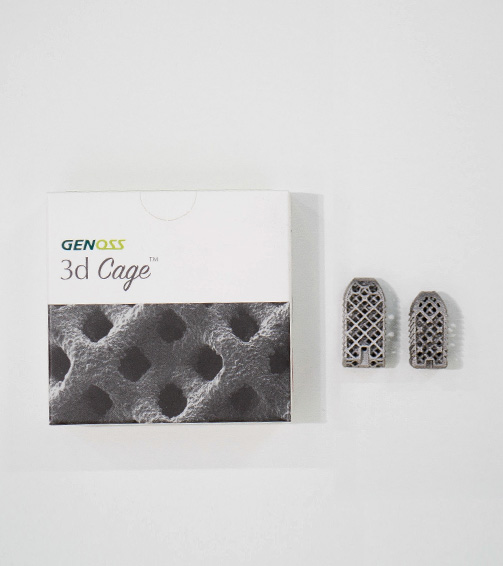

- The 3d Cage Lumbar is an intervertebral fusion cage used in lumbar fusion surgery as part of surgical treatment for lumbar spine disorders

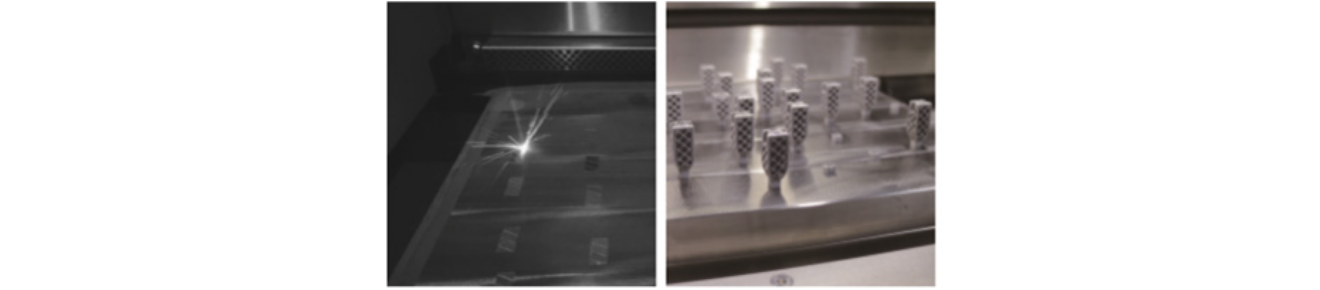

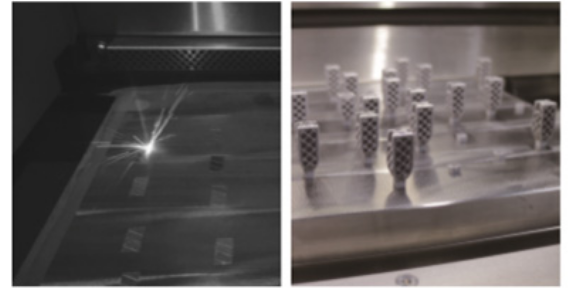

- This product manufactured with SLS (Selective Laser Sintering) 3D printing technology.

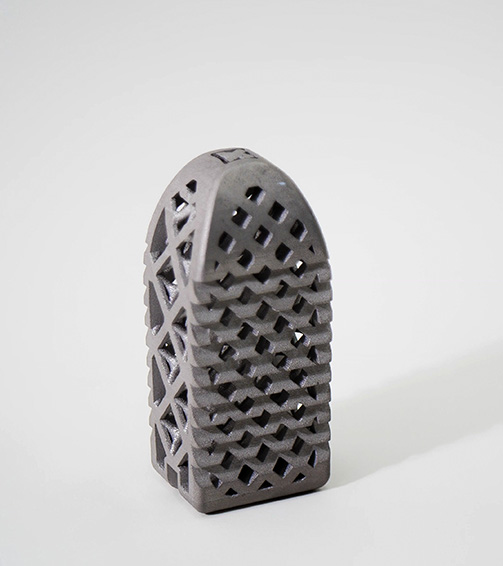

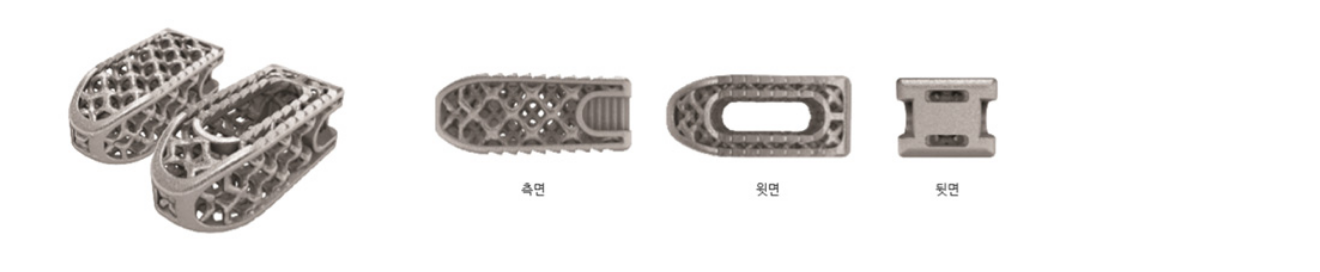

- It consists of a mesh structure and an outer frame structure made of Titanium Ti-6Al-4V ELI material.
- The front portion of the cage is designed in a bullet shape for easier implantation.
- It features a long window for bone grafting.
- It offers various lengths and angles to accommodate the anatomical structure of the patient and allow for customized surgical procedures.
Specifications
The 3d Cage Cervical is produced with Selective Laser Sintering technology [SLS Technique]
Model Name
| Product |
H(mm) |
W(mm) |
L(mm) |
Θ1(˚) |
Θ2(˚) |
P(mm) |
S(Ø) |
WT(mm) |
| LC |
7~15 |
9~16 |
22~36 |
0˚~ 8˚ |
0˚~ 8˚ |
0~1.2 |
0.7~1.2 |
3~8 |
